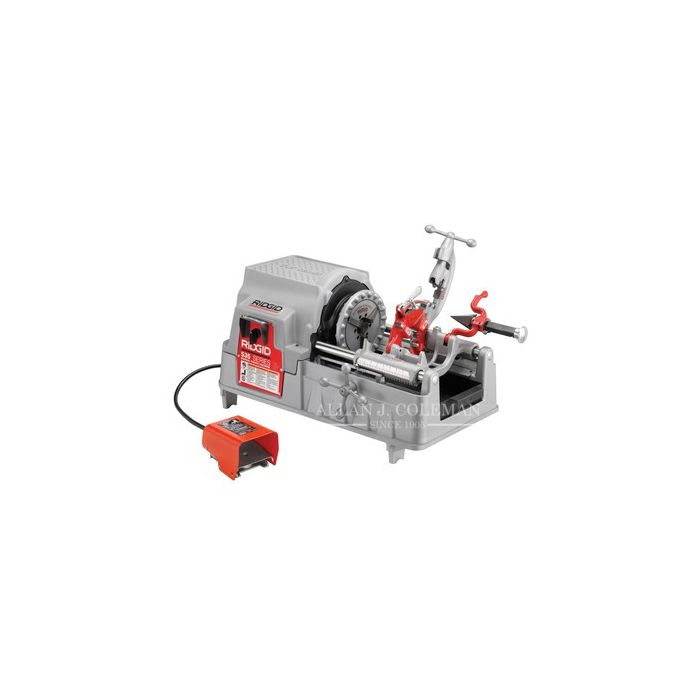

The Model 535 maintains the ruggedness of the industry workhorse while adding the features tht makes the threading opertation more productive. A large 1.75 gal chip tray and oil reservoir make the 535 ideal for longer uninterrupted threading. The 535 features a high clearance carriage making the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. Speed chuck with rocker-action jaws centers and grips work piece instantly. Can be used with geared threaders Model 141 and 161. Uses Model 816/817 semiautomatic, Model 815A self-opening or Modek 811A quick-opening die heads. Length gauge for quick, accurate cut-off. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Standard Equipment: 42365 - Reamer: 42390 - Wheel-Type Cutter; 44185 - Cutter Wheel E1032; 46015 - Hex Key 5/32; 46035 - Hex Key 3/16; 47765 - Dies, Univ 1/2-3/4 NPT; 47770 - Dies, Univ. 1-2 NPT; 70835 - Nu-Clear Thread Cutting Oil; 97065 - 811A 1/8"-2" NPT Quick-Opening RH
Unit Weight | 260 lb. / 117.9 kg |
---|---|
Voltage | 115V |
Pipe Capacity | 1/2 - 2 in. |
Power Source | 1/2 HP Single -Phase Motor |
Spindle Speed | 36 RPM |
